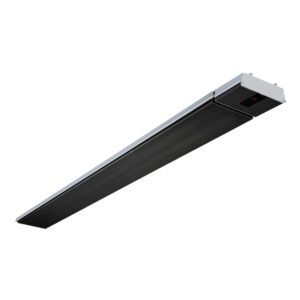

HEATSTRIP® TG2200RB Electric heater is for protected undercover outdoor and indoor areas such as alfresco areas, verandas, patios, garages, bathrooms etc.
General recommendations for HEATSTRIP® TG2200RB:
- Ideal mounting height: 2.3m to 2.5m. Maximum is 2.7m in a fully protected/enclosed outdoor environment.
- Ideal mounting location: ceiling mounted, directly above area to be heated (eg. above a table)
- For a protected outdoor area, a minimum of 500W/m2 is required. For indoor spot heating, a minimum heating capacity of 400W/m2 is recommended.
The table below outlines the maximum coverage of the HEATSTRIP® TG2200RB based on 3 different scenarios with direct overhead mounting. For example, for an outdoor area that is protected from prevailing winds by walls, cafe blinds etc, Model TG2200RB will cover 3.6m2. For angled wall mounting applications, the coverage is reduced by up to 40%.
| MODEL | INDOOR PROTECTED (m2) | OUTDOOR ENCLOSED (m2) | OUTDOOR EXPOSED (m2) |
|---|---|---|---|
| TG2200RB | 4.5 | 3.6 | 2 |
The installation of HEATSTRIP® TG2200RB is simple and easy with the standard mounting brackets supplied. For other locations, there are a range of mounting options available – (refer to diagrams). The HEATSTRIP® TG2200RB can be mounted directly to the ceiling; angled downwards on a wall; suspended on chain; attached to beams/poles/umbrella’s; mounted end-to-end, or 2 units together.
- Minimum mounting height (including flush mount) 2.1m
- Ideal mounting height (including flush mount) 2.2m – 2.4m
- Maximum mounting height (including flush mount) 2.5m
For higher ceiling heights, units can be lowered using the standard mounting brackets with chains or wires. he mounting height of the electric heater can have a significant impact on performance. For mounting heights higher than the ideal range, we recommend the use of wires/chains or optional extension poles to reduce the height and ensure the heater is within the ideal range. Heater performance may be affected if outside this range.
*Chain/wire not included
| MODEL | POWER (Watts) | CURRENT (Amps) | DIMENSIONS (mm) | WEIGHT (kg) | LEAD LENGTH (mm) | PLUG | HEATING AREA (m2) |
|---|---|---|---|---|---|---|---|
| TG2200RB | 2200 | 9.2 | 1144 x 162 x 50 | 4.7 | 1500 | YES | 3-4 |
Materials of Construction: High temperature ceramic coated extruded alloy. IPX4 Rating.
-
Heatstrip TG2200RB 2.2kw$499.00
