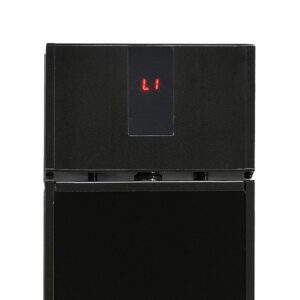

This sleek, slimline heater with a smooth German Schott glass front is the perfect all-black electric heating solution for instant performance. Easily control the heater with the included remote and app, with a timer rang-ing from 0-24 hours and 3 different heating levels. Whether you need localised or direct spot heating indoors or outdoors, this heater is sure to meet your needs.
General recommendations for HEATSTRIP® Enhance (THG-BA):
• Ideal mounting height: 2.3m to 2.5m, and the maximum is 2.8m. Minimum is 2.1m.
• Ideal mounting location: ceiling mounted, directly above area to be heated (e.g. above a table)
For the majority of outdoor applications, the most effective method is to spot heat a table or similar area. The diagrams below provides an easy selection guide for the approximate model and quantity of heaters required to heat common residential table settings.
Selection are based on HEATSTRIP Enhance (THG-BA) being mounted at 2.4m from the floor in a fully enclosed undercover outdoor area. Above data is based on direct overhead ceiling mounting. If the heaters are wall mounted, the radiant footprint may be reduced. The below diagrams show the approximate heating area for each model, based on both an indoor protected, outdoor enclosed and outdoor exposed location.
| MODEL | INDOOR PROTECTED (m2) | OUTDOOR ENCLOSED (m2) | OUTDOOR EXPOSED (m2) |
|---|---|---|---|
| THG2400BA | 9 | 6 | 4 |
| THG3200BA | 14 | 9 | 6 |
The installation of HEATSTRIP® Enhance with remote and app (THG-BA) is simple and easy with the standard mounting brackets supplied. For other more challenging locations there are a range of mounting options available – refer to below diagrams.
The HEATSTRIP® Enhance with remote & app control can be mounted directly to the ceiling, flush mounted into the ceiling, angled downwards on a wall, suspended on chains, poles or attached to beams and rafters. Refer to the following pages for more detailed information on each mounting option.
•Chain not included
| MODEL | POWER (Watts) | CURRENT (Amps) | DIMENSIONS (mm) | WEIGHT (kg) | LEAD LENGTH (mm) | PLUG | HEATING AREA (m2) |
|---|---|---|---|---|---|---|---|
| THG3200BA | 3200 | 13.5 | 1020 x 187 x 76 | 10 | 1000 | NO | 8-10 |
Materials of Construction: High temperature ceramic coated extruded alloy. IP55 Rated.
